MQJD-A-A Stroke -10-60° 0-5V High Accuracy Single Axis Inclinometer Angle Sensor Tilt Sensor for Horizontal Installation(Mqjd30-a-a3)

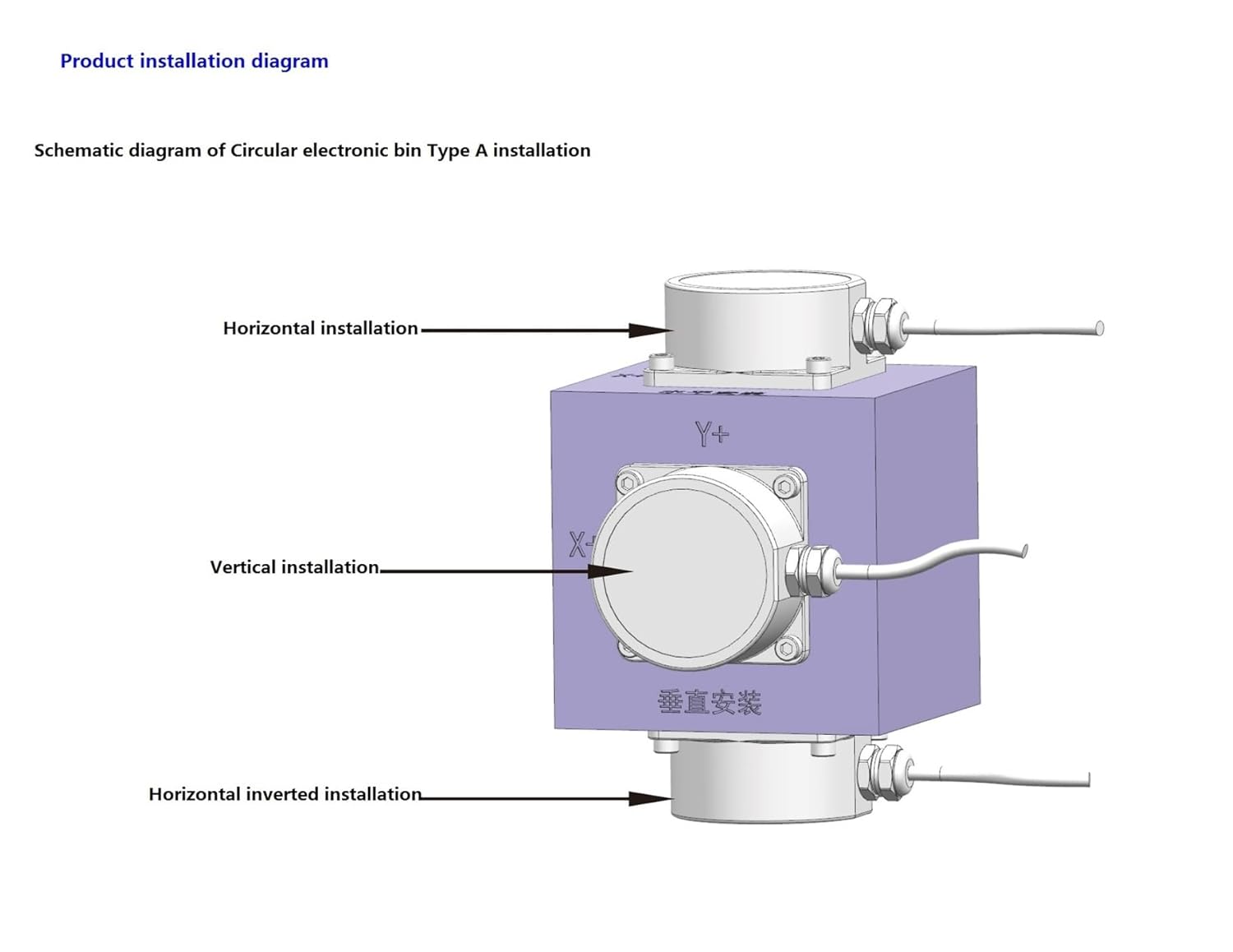

sensorMeasurement range ±10° ±15° ±30° ±45 ±60° ±30° ±60°Resolution 0.001° 0.01°Temperature effect on zero ±0.0007°/ ±0.005°/Working current 18~45mA(24V) 20mAOutput signal 0-5V/0-10V/4-20mA/RS485Voltage supply +DC9-36VWorking temperature -40~85Storage temperature -55~+100<;;1sOutput frequency 5~ 10HzInsulation resistance 100M ohmShock resistance 2000g 0.5ms 3time/shaftAnti-vibration 10grms 10-1000HzProtection grade IP67Shell material Zinc alloyInstallation Electrical connectionApplication field of MQJ tilt sensor:Application: Thereare many applications for MQJ tilt sensor. With the development of technology tilt sensor is more and more widely used. Suitable for factory mountain railway tunnel ship machinery construction bridge laying dam building automobile nuclear industry aerospace industry etc.

• sensor
• Angle sensor adopts the magnetic induction principle (internal non-contact type) to measure the Angle.
• It has the characteristics of no contact long life high resolution high frequency noise low temperature drift excellent linearity waterproof dustproof vibration resistance anti-interference and so on.
• Widely used in water oil vibration impact and other harsh industrial environment.
• osition measurement is an ideal product to replace optical encoder rotary transformer conductive plastic potentiometer
• If you have any questions please feel free to contact us. We will do our best to solve it for you.
