Product details
| Management number | 210012080 | Release Date | 2026/04/02 | List Price | $22.40 | Model Number | 210012080 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

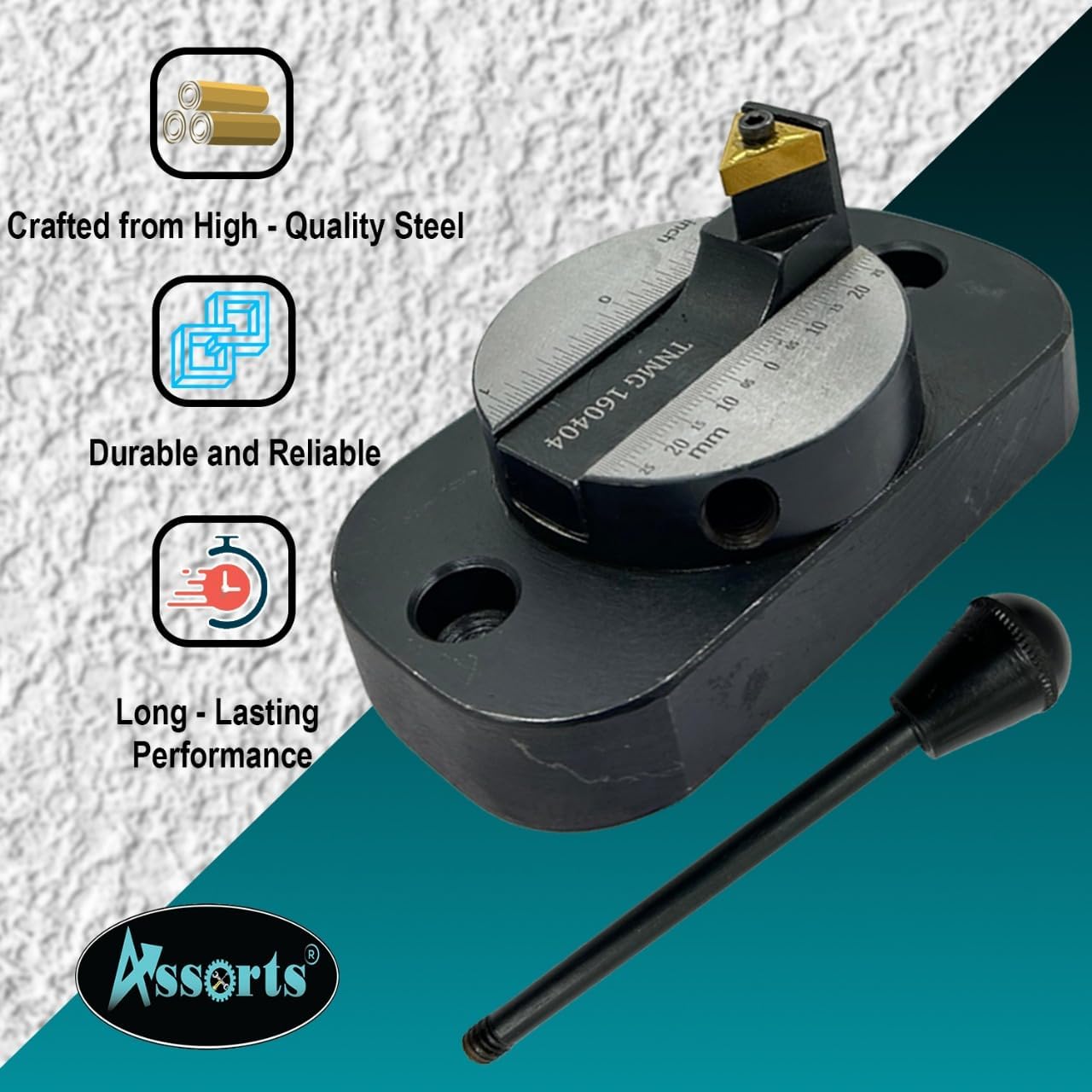

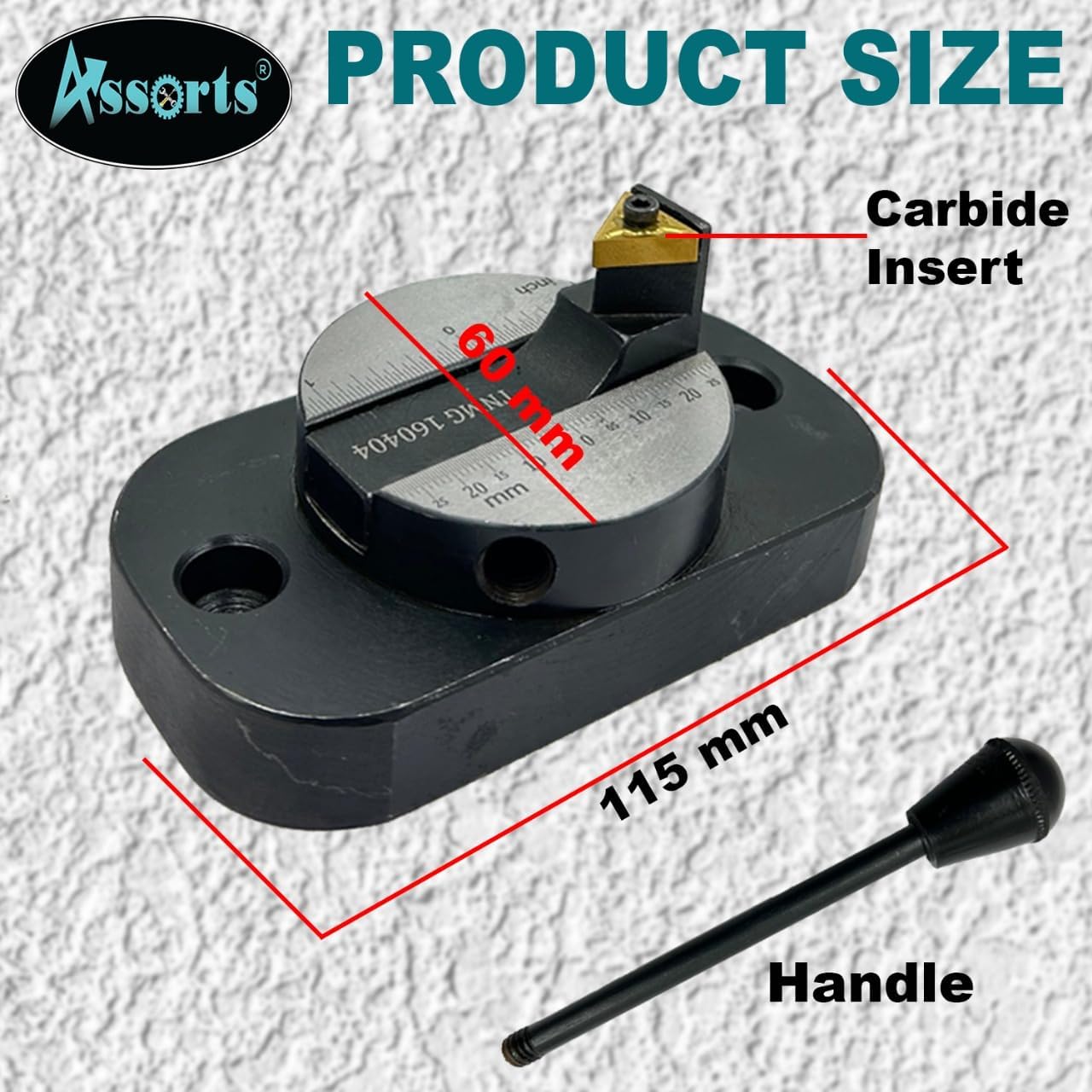

- This fits straight onto the cross slide of your lathe machine for quick turning of the convex metal, plastic or wood balls ( In case of single bit) and Concave Curvature, not really ball (*refer to the image provided).The Head can be adjusted for different Ball Sizes. Maximum Convex ball diameter possible is 42 mm
- The much demanded graduations in imperial and metric measurements are now being provided as a reference scale for turning a approx ball diameter calculations.
- Its is important to note that the scale provided is for a close idea of the diameter of the desired ball size. It should not be referred for an exact measurement by the users. The insert tip should be adjusted gradually to the given reading for achieving the desired size of the ball
- Pls note the scale is a radius reading, which means that for any set parameter on this scale, you will get double of it as the ball diameter. Example- If you set the scale at a measurement of 15 mm, you will get a ball size of diameter 30 mm.
- Provided with a bearing base for easy free rotation on the attachment's head in order to have a smooth ball finish. However a fine emery paper is recommended to better the finish after turning at a slow rpm of the rotating workpiece.. Supplied in a plastic suitcase bag
| Size | Direct Fit to Myford & Similar Size Lathe Machine |
|---|---|
| Color | Black |
| Shape | Oval |
| Style | Single Bit For Convex Ball |
| Usage | for metal working wood working on lathe machine to make a round ball |
| Finish | Epoxy Black Finsih for a rust free life |
| Material | Tool Steel & carbide inserts |
| Item Weight | 3.92 pounds |
| Part Number | ALBTA-OB-XX |
| Manufacturer | Assort Machine Tools Company |
| Power Source | hand-powered |
| Display Style | Non Digital Caliberation |
| Handle Material | Tool steel with Plastic Cap |
| Number Of Pieces | 1 |
| Item model number | ALBTA-OB-XX |
| Number of Handles | 1 |
| Batteries Included | No |
| Batteries Required | No |
| Measurement System | Imperial & Metric Scale Both |
| Package Dimensions | 10.55 x 8.74 x 2.99 inches |

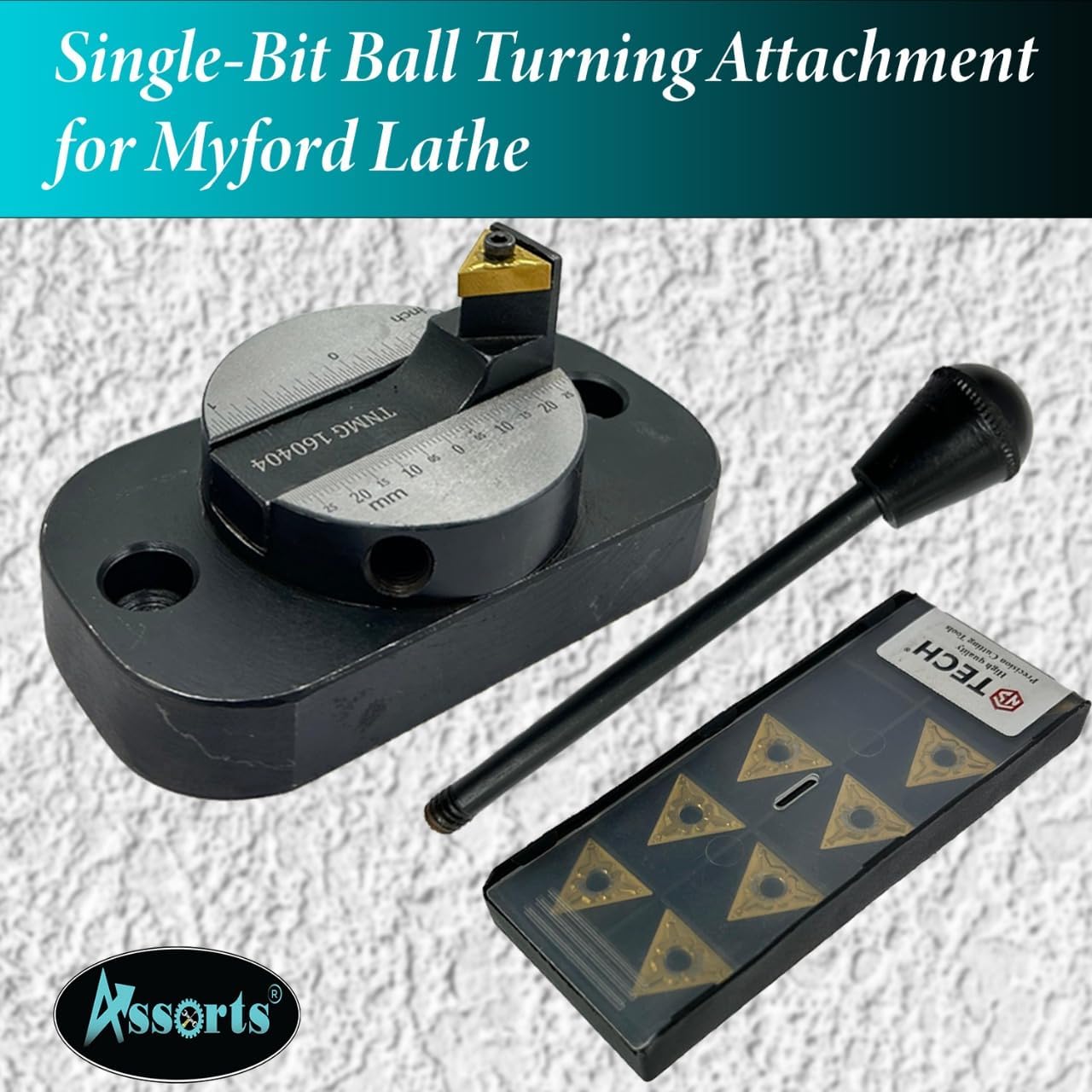

| Included Components | 1 x Single Bit Ball turning attachment , 1 x Allen key & 1 Box of 10 inserts |
| Installation Method | Surface-Mounted |
| Item Package Quantity | 1 |
| Is Discontinued By Manufacturer | No |
