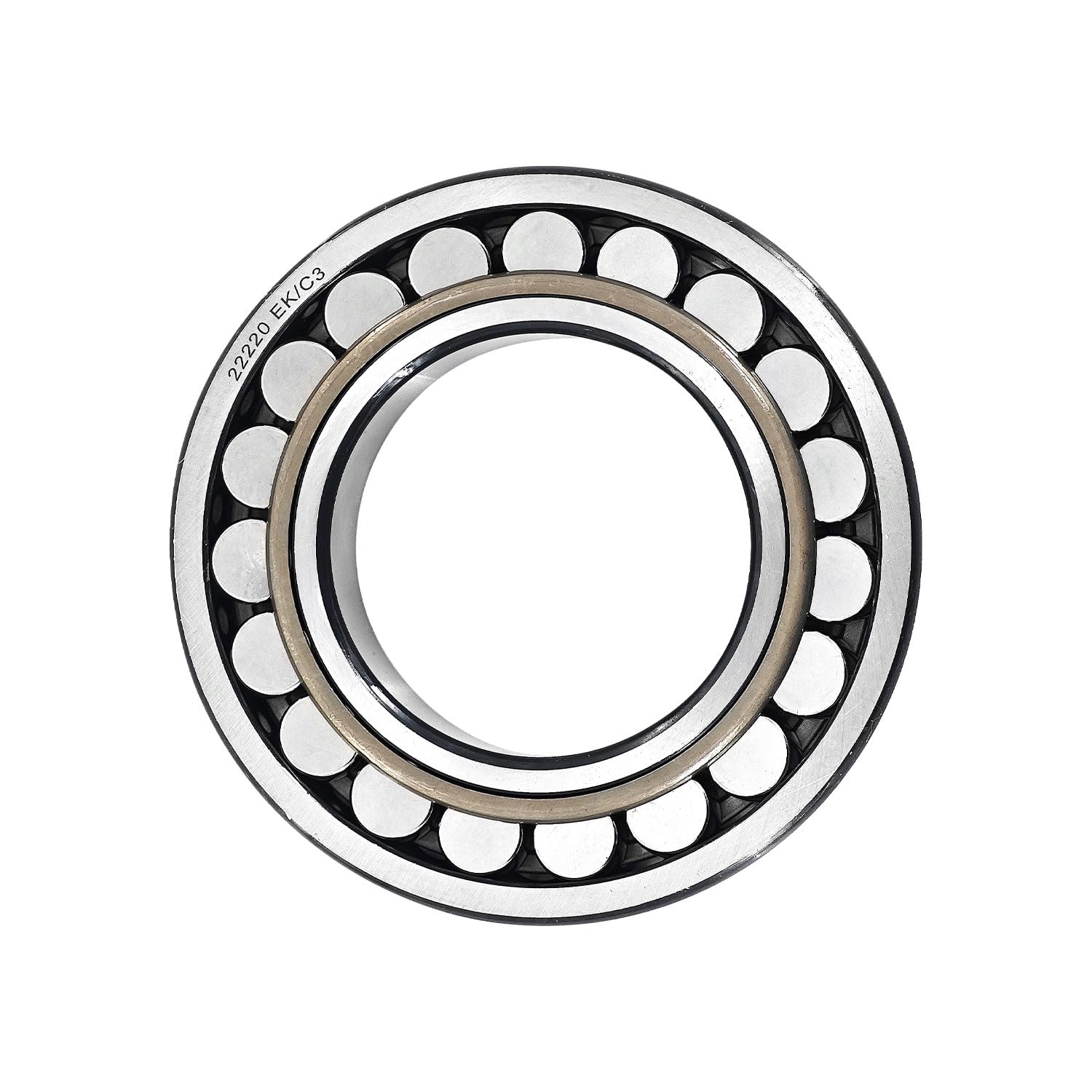

22220 EK/C3 Explorer Spherical Roller Bearing; 2 Rows, 1:12 Tapered; 3.937"/ 100mm Bore, 7.087"/ 180mm OD, 1.811"/ 46mm Width; 4500 RPM Maximum Rotational Speed
Product details
| Management number | 210981628 | Release Date | 2026/04/04 | List Price | $50.00 | Model Number | 210981628 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Item Name: Explorer Spherical Roller BearingWhat's in Box: Spherical Roller Bearing *1Item Condition: Brand NewMPN: 22220 EK/C3DimensionsBore Diameter: 3.937 in/ 100 mmOutside Diameter: 7.087 in/ 180 mmWidth: 1.811 in/ 46 mmPerformanceBasic Dynamic Load Rating: 97,342 lbfBasic Static Load Rating: 110,156 lbfReference Speed: 3,400 r/minLimiting Speed: 4,500 r/minPropertiesNumber of Rows: 2Locating Feature (Outer Ring): WithoutBore Type: Tapered 1:12Cage Sheet: MetalRadial Internal Clearance: C3Tolerance Class (Dimensions): NormalTolerance Class (Run-out): P5Sealing: WithoutLubricant: NoneFitWithdrawal sleeve, basic design, ISO standards AHX 320Adapter sleeve with KM lock nut and MB lock washer, metric dimensions H 320Adapter sleeve with KMFE lock nut, metric dimensions H 320 EAdapter sleeve with KM lock nut and MB lock washer, metric dimensions with inch bore HA 320Adapter sleeve HA 320 EAdapter sleeve with KM lock nut and MB lock washer, metric dimensions with inch bore HE 320Adapter sleeve HE 320 EAdapter sleeve with AN or N lock nut and W lock washer, inch dimensions SNW 20X3.7/16Widely used in heavy industries such as mining, metallurgy, papermaking, wind power, and port machinery, this bearing is ideal for high-load applications and bearing systems with significant misalignment tolerance.Why ShenBrala?ShenBrala Explorer Spherical Roller Bearing, made from premium bearing steel, handles up to 97,342 lbf dynamic and 110,156 lbf static loads. With a 4,500 RPM limit and reduced friction, it ensures superior strength and durability. Backed by a 𝟏-𝐘𝐞𝐚𝐫 𝐰𝐚𝐫𝐫𝐚𝐧𝐭𝐲 for peace of mind.NoteBefore placing your order, please check your manual and part number to select the correct one. If you have any questions, 𝐜𝐨𝐧𝐭𝐚𝐜𝐭 𝐮𝐬 to ensure this part fits your exact needs.
- 𝐌𝐏𝐍: 22220 EK/C3
- 𝐅𝐢𝐭: Designed for heavy-duty industries, seamlessly fits H320/ H320E/ HA320E/ HE320E/ AHX320 Adapter Sleeves, Withdrawal Sleeves and Bearing Housings, ensuring reliable performance under extreme loads
- 𝐇𝐞𝐚𝐯𝐲 𝐃𝐮𝐭𝐲: Explorer spherical roller bearing is crafted from premium bearing steel, handling dynamic loads up to 97,342 lbf and static loads up to 110,156 lbf. With a limit speed of 4,500 RPM and reference speed of 3,400 RPM, it delivers superior strength for heavy-duty applications
- 𝐏𝐫𝐞𝐜𝐢𝐬𝐞: P5 run-out tolerance and C3 internal clearance for reduced friction, improved stability, and extended service life
- 𝐃𝐮𝐫𝐚𝐛𝐥𝐞: Tapered bore (1:12) and robust sheet metal cage enhance alignment capability and structural integrity under extreme conditions
- 𝐖𝐨𝐫𝐫𝐲 𝐅𝐫𝐞𝐞: Based on strict quality control, we believe the Spherical Roller Bearing will work well on your machine; In case of any issue, ShenBrala will provide a 1-Year after support for peace of mind
| Brand Name | ShenBrala |
|---|---|
| Item Weight | 10 Pounds |
| Manufacturer | Explorer Spherical Roller Bearing |
| Material Type | Metal |
| Bearing Number | 22220 EK/C3 |
| Item Thickness | 46 Millimeters |
| Item Dimensions | 7 x 7 x 2 inches |
| Outside Diameter | 180 Millimeters |
| Specification Met | 𝐩𝐫𝐞𝐦𝐢𝐮𝐦 |
| Included Components | Explorer Spherical Roller Bearing *1 |
